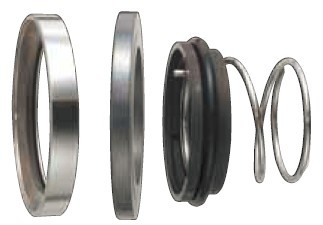

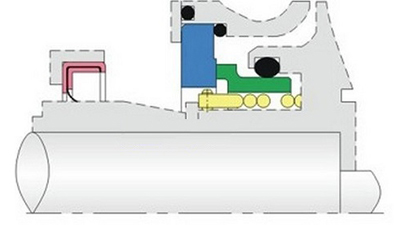

N ALC -2 (ALFA LEVEL)

N ALC -2 (ALFA LEVEL)

OPERATIONAL CONDITIONS:

  • TEMPERATURE:-10℃ TO 120℃
  • PRESSURE: ≤ . 6 MPA
  • SPEED:≤23M/S

APPLICATIONS:

  • MILK, FOOD & BEVERAGE, WATER APPLICATIONS

MATERIALS:

  • STATIONARY RING:SILICON CARBIDE REACTION BONDED, SILICON CARBIDE SINTERED, NI-BINDER TUNGSTEN CARBIDE, CO-BINDER TUNGSTEN CARBIDE
  • ROTARY RING: RESIN IMPREGNATED CARBON, ANTIMONY CARBON, SILICON CARBIDE SINTERED, SILICON CARBIDE REACTION BONDED, TUNGSTEN CARBIDE, NI-BINDER TUNGSTEN CARBIDE
  • SECONDARY SEAL: NITRILE (NBR), ETHYLENE PROPYLENE (EPDM), FLUOROCARBON RUBBER (VITON),FFKM,
