Nixon Seals

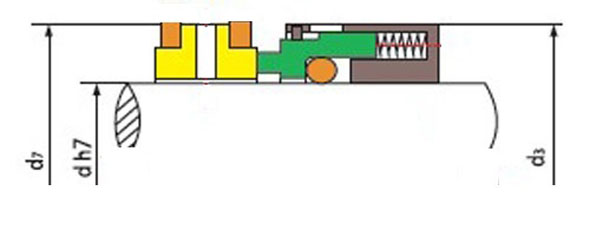

NRA SEALS By SIZE INCH	D	D₃	D₇	L₁	L₂	L₃
1 1/8"	28.575	47.6	59.4	25.6	15.9	25.3
1 5/8"	41.275	62.0	71.8	29.5	15.9	25.3
2 1/8"	53.975	79.4	84.6	29.3	15.9	25.3
2 5/8"	66.675	88.9	111.0	41.3	15.9	25.3

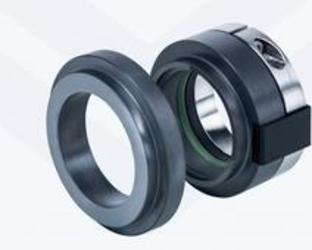

NRA MECHANICAL SEAL

STATIONARY RING: CERAMIC, SILICON CARBIDE REACTION BONDED, SILICON CARBIDE SINTERED, NI-BINDER TUNGSTEN CARBIDE, CO-BINDER TUNGSTEN CARBIDE
ROTARY RING:RESIN IMPREGNATED CARBON, ANTIMONY CARBON, SILICON CARBIDE SINTERED, SILICON CARBIDE REACTION BONDED, TUNGSTEN CARBIDE, NI-BINDER TUNGSTEN CARBIDE
SECONDARY SEAL:NITRILE (NBR), ETHYLENE PROPYLENE (EPDM), FLUOROCARBON RUBBER (VITON)
