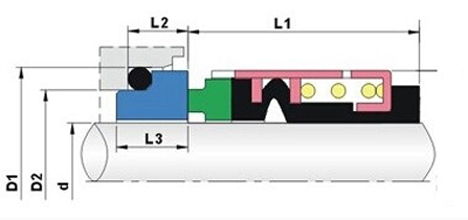

N502 SEALS By SIZE INCH	d	D	D1	L1	L2
-14	14	24	25	12	23.2
-16	16	26	27	12	23.2
-18	18	32	33	13.5	24.2
-20	20	34	35	13.5	24.2
-22	22	36	37	13.5	24.2
-24	24	38	39	13.5	26.9
-25	25	39	40	13	27.2
-28	28	42	43	12.5	30.2
-30	30	44	45	11.9	30.7
-32	32	46	48	11.9	30.7
-33	33	47	48	11.9	30.7
-35	35	49	50	11.9	30.7
-38	38	54	56	12.9	32.2
-40	40	56	58	12.9	32.2
-43	43	59	61	12.9	32.2
-45	45	61	63	12.9	32.2
-48	48	64	66	12.9	32.2
-50	50	66	70	13.4	34.2
-53	53	69	73	13.4	34.2
-55	55	71	75	13.4	34.2
-58	58	78	78	13.4	39.2
-60	60	80	80	13.4	39.2
-63	63	83	83	13.4	39.2
-65	65	85	85	13.4	39.2
-68	68	88	90	13.4	39.2
-70	70	89	92	14.5	45.7
-75	75	96	97	14.5	45.7
-80	80	104	105	15	45.2
-85	85	108	110	15	45.2
-90	90	114	115	15	50.2
-95	95	118	120	15	50.2
-100	100	124	125	15	50.2

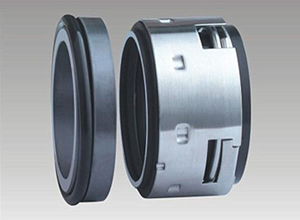

N502 MECHANICAL SEAL

STATIONARY RING: CERAMIC , SILICON CARBIDE REACTION BONDED, SILICON CARBIDE SINTERED, NI-BINDER TUNGSTEN CARBIDE, CO-BINDER TUNGSTEN CARBIDE
ROTARY RING:RESIN IMPREGNATED CARBON, ANTIMONY IMPREG, CARBON, SILICON CARBIDE SINTERED, SILICON CARBIDE REACTION BONDED, CO-BINDER TUNGSTEN CARBIDE, NI-BINDER TUNGSTEN CARBIDE
SECONDARY SEAL:NITRILE (NBR), ETHYLENE PROPYLENE (EPDM), FLUOROCARBON RUBBER (VITON)
