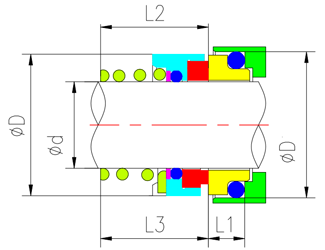

NCSUO SEALS By SIZE d D D1 L1 L2 L3
-10 10 20 21 6.6 - 16.9
-12 12 22 23 6.6 - 17.4
-14 14 24 25 6.6 16.5 17.4
-16 16 26 27 6.6 16.5 19.5
-18 18 31 33 7.5 18 20.5
-20 20 34 35 7.5 19 22.0
-22 22 36 37 7.5 20.5 23.5
-24 24 38 39 7.5 22 25.0
-25 25 39 40 7.5 23.5 26.5
-28 28 42 43 7.5 24.5 26.5
-30 30 44 45 7.5 24.5 25.0
-32 32 46 48 7.5 28 28.5
-33 33 47 48 7.5 -28 -28.5
-35 35 49 50 7.5 28 28.5
-38 38 54 56 9 31 32.2
-40 40 56 58 9 34 34.7
-43 43 59 61 9 -34 -34.7
-45 45 61 63 9 36.5 39.2
-48 48 64 66 9 42 44.7
-50 50 66 70 9.5 43 45.7
-53 53 69 73 11 -43 -45.7
-55 55 71 75 11 47 49.0
-58 58 78 78 11 50 52.0
-60 60 79 80 11 51 55.0
-63 63 83 83 11 -51 -55
-65 65 85 85 11 52 54.3
-68 68 88 90 11.3 52.7 55.3
-70 70 90 92 11.3 54 56.3
-75 75 98 97 11.3 54 56.3
-80 80 103 105 12 58 59.3

DESCRIPTION:

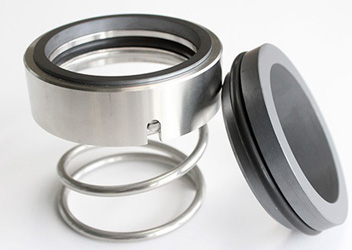

NSCSUO MECHANICAL SEAL

OPERATIONAL CONDITIONS:

  • TEMPERATURE:-50℃ TO +200℃
  • PRESSURE:≤1 MPA
  • SPEED:≤20 M/S

MATERIALS:

  • STATIONARY RING: CERAMIC, SILICON CARBIDE REACTION BONDED, SILICON CARBIDE SINTERED, NI-BINDER TUNGSTEN CARBIDE, CO-BINDER TUNGSTEN CARBIDE
  • ROTARY RING:RESIN IMPREGNATED CARBON GRAPHITE, ANTIMONY CARBON GRAPHITE, SILICON CARBIDE SINTERED, SILICON CARBIDE REACTION BONDED, TUNGSTEN CARBIDE, NI-BINDER TUNGSTEN CARBIDE
  • SECONDARY SEAL:NITRILE (NBR), ETHYLENE PROPYLENE (EPDM), FLUOROCARBON RUBBER (VITON)

APPLICATIONS:

  • CLEAN WATER,
  • SEWAGE WATER
  • OIL AND OTHER MODERATELY CORROSIVE FLUIDS
