NSSUO

NSSUO

NSSUO Seal size IN(M.M) d0 d3 d4 d6 d7 d2 d5/ I3 I1 I4
18 22 32 34 27 33 36 38 55 45 20
20 24 34 36 29 35 38 40 60 45 20
22 26 36 38 31 37 40 42 60 45 20
24 28 38 40 33 39 42 44 60 50 20
25 30 39 41 34 40 44 46 60 50 20
28 33 42 44 37 43 47 49 65 50 20
30 35 44 46 39 45 49 51 65 50 20
32 38 46 48 42 48 54 58 65 55 20
33 38 47 49 42 48 54 58 65 55 20
35 40 49 51 44 50 56 60 65 55 20
38 43 54 58 49 56 59 63 75 55 23
45 56 61 51

58

61 65 75 55 23
43 48 59 63 54 61 64 68 75 60 23
45 50 61 65 56 63 66 70 75 60 23
48 53 64 68 59 66 69 73 85 60 23

DESCRIPTION:

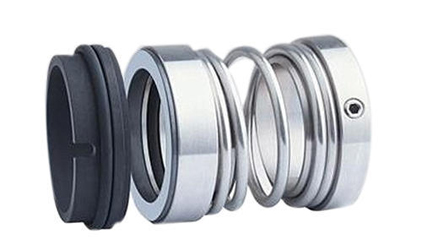

NSSUO MECHANICAL SEAL

OPERATIONAL CONDITIONS:

  • TEMPERATURE: -30℃ TO +200℃
  • PRESSURE: ≤1.2MPA
  • SPEED:≤20M/S

MATERIALS:

  • STATIONARY RING: CERAMIC, SILICON CARBIDE REACTION BONDED, SILICON CARBIDE SINTERED, NI-BINDER TUNGSTEN CARBIDE, CO-BINDER TUNGSTEN CARBIDE
  • ROTARY RING:RESIN IMPREGNATED CARBON GRAPHITE, ANTIMONY CARBON GRAPHITE, SILICON CARBIDE SINTERED, SILICON CARBIDE REACTION BONDED, TUNGSTEN CARBIDE, NI-BINDER TUNGSTEN CARBIDE
  • SECONDARY SEAL:NITRILE (NBR), ETHYLENE PROPYLENE (EPDM), FLUOROCARBON RUBBER (VITON)

APPLICATIONS:

  • CLEAN WATER,
  • SEWAGE WATER
  • OILS AND OTHER MODERATELY CORROSIVE FLUIDS

Download here the brochure of our Mechanical Seals and Seal support systems.
