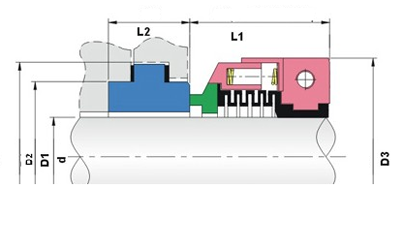

| NTBS SEAL BY SIZE | d | D | D1 | D2 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|
| -1" | 25.4 | 60 | 54 | 42.86 | 8 | 45 | 4.8 |
| -1 1/8" | 28.6 | 67 | 60 | 46.03 | 11 | 45 | 8.0 |
| -1 1/4" | 31.75 | 69 | 65 | 50.8 | 11 | 45 | 8.0 |
| -1 3/8" | 34.93 | 72 | 68 | 53.98 | 11 | 45 | 8.0 |
| -1 1/2" | 38.1 | 76 | 71 | 57.15 | 11 | 45 | 8.0 |
| -1 5/8" | 41.28 | 80 | 78 | 63.5 | 11 | 45 | 8.0 |
| -1 3/4" | 44.45 | 84 | 81 | 66.68 | 11 | 46 | 8.0 |
| -1 7/8" | 47.63 | 86 | 84 | 69.85 | 11 | 46 | 8.0 |
| -2" | 50.8 | 90 | 87 | 73.03 | 14.3 | 46 | 9.5 |
| -2 1/8" | 53.98 | 95 | 97 | 79.38 | 14.3 | 46 | 9.5 |
| -2 1/4" | 57.15 | 98 | 100 | 82.55 | 14.3 | 46 | 9.5 |
| -2 3/8" | 60.3 | 100 | 103 | 85.73 | 14.3 | 46 | 9.5 |

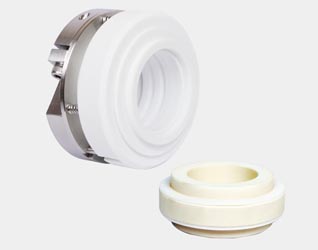

NTBS -TEFLON BELLOW SEAL
