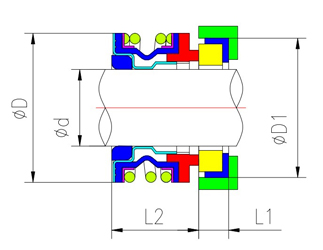

NR18 SEALS By SIZE INCH	d	D	D1	L1	L2
-3/8"A	9.53	22.8	22.23	6.35	16.08
-3/8"	9.53	26.97	25.4	7.93	16.86
-1/2"A	12.7	26.97	25.4	6.35	16.86
-1/2"	12.7	26.97	25.4	7.93	16.86
-5/8"	15.88	30.94	31.75	10.31	18.44
-3/4"	19.05	34.11	34.93	10.31	18.44
-7/8"	22.23	42.85	41.28	11.1	20.82
-1"	25.4	42.85	41.28	11.1	20.82

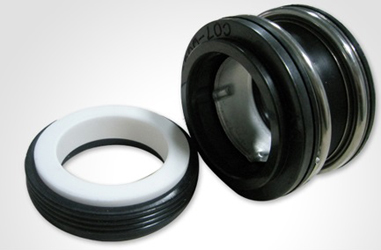

NR18 MECHANICAL SEAL

STATIONARY RING: CERAMIC, SILICON CARBIDE REACTION BONDED, SILICON CARBIDE SINTERED, NI-BINDER TUNGSTEN CARBIDE, CO-BINDER TUNGSTEN CARBIDE
ROTARY RING:RESIN IMPREGNATED CARBON GRAPHITE, ANTIMONY CARBON GRAPHITE, SILICON CARBIDE SINTERED, SILICON CARBIDE REACTION BONDED, TUNGSTEN CARBIDE, NI-BINDER TUNGSTEN CARBIDE
SECONDARY SEAL:NITRILE (NBR), ETHYLENE PROPYLENE (EPDM), FLUOROCARBON RUBBER (VITON)
