Nixon Seals

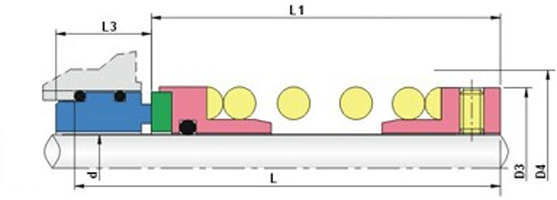

N980 SEALS By SIZE	d	D	D1	L1	L2
-18	18	32	33.0	10.0	35.0
-20	20	34	35.0	10.0	35.0
-22	22	36	37.0	10.0	35.0
-24	24	38	39.0	10.0	40.0
-25	25	39	40.0	10.0	40.0
-28	28	42	43.0	10.0	40.0
-30	30	44	45.0	10.0	40.0
-32	32	46	48.0	10.0	45.0
-33	33	47	48.0	10.0	45.0
-35	35	49	50.0	10.0	45.0
-38	38	54	56.0	11.0	44.0
-40	40	56	58.0	11.0	44.0
-43	43	59	61.0	11.0	49.0
-45	45	61	63.0&	11.0	49.0
-48	48	64	66.0	11.0	49.0
-50	50	66	70.0	13.0	47.0
-53	53	69	73.0	13.0	57.0
-55	55	71	75.0	13.0	57.0
-58	58	78	78.0	13.0	57.0
-60	60	80	80.0	13.0	57.0
-63	63	83	83.0	13.0	57.0
-65	65	85	85.0	13.0	67.0
-68	68	88	90.0	15.3	64.7
-70	70	90	92.0	15.3	64.7
-75	75	99	97.0	15.3	64.7
-80	80	104	105.0	15.7	74.3
-85	85	109	110.0	15.7	74.3
-90	90	114	115.0	15.7	74.3
-95	95	119	120.0	15.7	74.3
-100	100	124	125.0	15.7	74.3

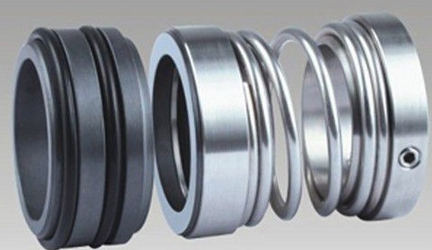

N 980 MECHANICAL SEAL

STATIONARY RING: CERAMIC, SILICON CARBIDE REACTION BONDED, SILICON CARBIDE SINTERED, NI-BINDER TUNGSTEN CARBIDE, CO-BINDER TUNGSTEN CARBIDE
ROTARY RING:RESIN IMPREGNATED CARBON GRAPHITE, ANTIMONY CARBON GRAPHITE, SILICON CARBIDE SINTERED, SILICON CARBIDE REACTION BONDED, TUNGSTEN CARBIDE, NI-BINDER TUNGSTEN CARBIDE
SECONDARY SEAL:NITRILE (NBR), ETHYLENE PROPYLENE (EPDM), FLUOROCARBON RUBBER (VITON)

N980
