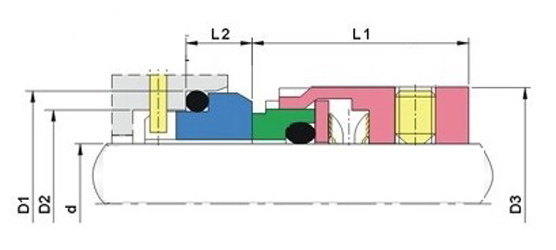

NM7N SEALS By SIZE	d	D	D1	L1	L2
-14	14	25	25	10	25.2
-16	16	27	27	10	25.2
-18	18	33	33	11.5	26.2
-20	20	35	35	11.5	26.2
-22	22	37	37	11.5	26.2
-24	24	39	39	11.5	28.7
-25	25	40	40	11.5	28.7
-28	28	43	43	11.5	31.2
-30	30	45	45	11.5	31.2
-32	32	47	48	11.5	31.2
-33	33	48	48	11.5	31.2
-35	35	50	50	11.5	31.2
-38	38	55	56	14	31.2
-40	40	57	58	14	31.2
-43	43	60	61	14	31.2
-45	45	62	63	14	31.2
-48	48	65	66	14	31.2
-50	50	67	70	15	32.7
-53	53	70	73	15	32.7
-55	55	72	75	15	32.7
-58	58	79	78	15	37.7
-60	60	81	80	15	37.7
-63	63	84	83	15	37.7
-65	65	86	85	15	37.7
-68	68	89	90	18	34.7
-70	70	91	92	18	42.2
-75	75	99	97	18	42.2
-80	80	104	105	18.2	42
-85	85	109	110	18.2	42
-90	90	114	115	18.2	47
-95	95	119	120	17.2	48
-100	100	124	125	17.2	48

NM7N MECHANICAL SEAL

STATIONARY RING: CERAMIC, SILICON CARBIDE REACTION BONDED, SILICON CARBIDE SINTERED, NI-BINDER TUNGSTEN CARBIDE, CO-BINDER TUNGSTEN CARBIDE
ROTARY RING:RESIN IMPREGNATED CARBON GRAPHITE, ANTIMONY CARBON GRAPHITE, SILICON CARBIDE SINTERED, SILICON CARBIDE REACTION BONDED, TUNGSTEN CARBIDE, NI-BINDER TUNGSTEN CARBIDE
SECONDARY SEAL:NITRILE (NBR), ETHYLENE PROPYLENE (EPDM), FLUOROCARBON RUBBER (VITON)
