NSL

NSL

NSL SEAL (inchs) D2 D3 D4 D6 D26 L1 L2 ''Z
3/8" 1/2" 5/8"

1.75

2.500

2.810

0.690

0.570

5.490

1.910

3.620

3.75*

4.500

1.270

1.875

2.630

2.940

0.690

0.570

5.490

1.910

3.750

3.87*

4.500

1.270

2.000

2.750

3.190

0.690

0.570

5.490

1.910

4.000

4.130

4.500

1.270

2.125

2.880

3.440

0.690

0.690

5.990

1.910

4.250

4.380

4.500

1.270

2.250

3.000

3.560

0.690

0.690

5.990

1.910

4.370

4.500

4.620

1.270

2.375

3.130

3.590

0.690

0.690

5.990

1.910

4.430

4.560

4.680

1.270

2.500

3.250

3.810

0.690

0.690

6.490

1.910

4.620

4.750

4.870

1.270

2.625

3.630

4.040

0.880

0.690

6.450

2.500

5.020

5.150

4.500

1.770

2.750

3.750

4.380

0.880

0.690

7.700

2.500

5.420

5.550

4.500

1.770

2.875

3.880

4.500

0.880

0.690

7.830

2.500

5.500

5.620

4.500

1.770

3.000

4.000

4.690

0.880

0.690

7.940

2.500

5.650

5.770

4.500

1.770

3.125

4.130

4.810

0.880

0.690

7.990

2.500

5.800

5.920

4.500

1.770

3.250

4.250

4.940

0.880

0.690

8.190

2.500

5.930

6.050

4.500

1.770

3.375

4.380

5.060

0.880

0.810

8.300

2.500

6.020

6.140

6.270

1.770

3.500

4.500

5.190

0.880

0.810

8.440

2.500

6.180

6.310

6.430

1.770

3.625

4.630

5.310

0.880

0.810

8.490

2.500

6.310

6.440

6.560

1.770

3.750

4.750

5.390

0.880

0.810

8.710

2.500

6.380

6.510

6.630

1.770

3.875

4.880

5.510

0.880

0.810

8.840

2.500

6.520

6.640

6.770

1.770

4.000

5.000

5.690

0.880

0.810

8.960

2.500

6.660

6.780

6.910

1.770

4.125

5.130

5.810

0.880

0.810

8.990

2.500

6,790

6.900

7.030

1.770

4.250

5.250

5.940

0.880

0.810

8.990

2.500

6.910

7.040

7.160

1.770

4.375

5.380

6.060

0.880

0.810

9.330

2.500

7.030

7.150

7.280

1.770

4.500

5.500

6.190

0.880

0.810

9.490

2.500

7.180

7.300

7.430

1.770

4.625

5.630

6.310

0.880

0.810

9.490

2.500

7.280

7.400

7.530

1.770

4.750

5.750

6.470

0.880

0.810

10.490

2.500

7.400

7.530

7.650

1.770

DESCRIPTION:

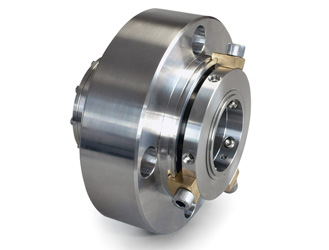

NSL SEAL

OPERATIONAL CONDITIONS:

  • TEMPERATURE:-20℃ TO 250℃
  • PRESSURE:≤2 MPA
  • SPEED:≤ 20 M/S

MATERIALS:

  • STATIONARY RING: SILICON CARBIDE REACTION BONDED, SILICON CARBIDE SINTERED, NI-BINDER TUNGSTEN CARBIDE, CO-BINDER TUNGSTEN CARBIDE
  • ROTARY RING: RESIN IMPREGNATED CARBON, ANTIMONY CARBON, SILICON CARBIDE SINTERED, SILICON CARBIDE REACTION BONDED, TUNGSTEN CARBIDE, NI-BINDER TUNGSTEN CARBIDE
  • SECONDARY SEAL: NITRILE (NBR), ETHYLENE PROPYLENE (EPDM), FLUOROCARBON RUBBER (VITON),FFKM

APPLICATIONS:

  • MEDUIUM SLURRIES APPLICATIONS
