Nixon Seals

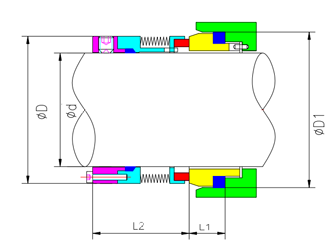

NMBG PACKING	d	D	D1	L1	L2
-16	16	38	35	11.5	46.7
-18	18	40	37	11.5	46.7
-20	20	42	40	11.5	46.7
-22	22	44	43	11.5	46.7
-24	24	46	43	11.5	46.7
-25	25	47	45	11.5	46.7
-28	28	50	48	11.5	46.7
-30	30	52	50	11.5	46.7
-32	32	54	56	14	46.7
-33	33	55	56	14	46.7
-35	35	57	58	14	46.7
-38	38	60	61	14	46.7
-40	40	66	63	14	46.7
-43	43	69	66	14	46.7
-45	45	71	70	15	46.7
-48	48	74	73	15	46.7
-50	50	76	75	15	46.7
-53	53	79	78	15	46.7
-55	55	81	80	15	46.7
-58	58	85	83	15	53.2
-60	60	87	85	15	53.2
-63	63	90	90	18	53.2
-65	65	92	92	18	53.2
-68	68	95	97	18	53.2
-70	70	97	97	18	53.2
-75	75	102	105	18.2	53
-80	80	107	110	18.2	53
-85	85	112	115	18.2	53
-90	90	117	120	17.2	54
-95	95	122	125	17.2	54
-100	100	127	134.3	20	54.2

NMBG METAL BELLOW SEAL WITH GRAFOIL PACKING

STATIONARY RING: SILICON CARBIDE REACTION BONDED, SILICON CARBIDE SINTERED, NI-BINDER TUNGSTEN CARBIDE, CO-BINDER TUNGSTEN CARBIDE
ROTARY RING:RESIN IMPREGNATED CARBON, ANTIMONY CARBON, SILICON CARBIDE SINTERED, SILICON CARBIDE REACTION BONDED, TUNGSTEN CARBIDE, NI-BINDER TUNGSTEN CARBIDE
SECONDARY SEAL:NITRILE (NBR), ETHYLENE PROPYLENE (EPDM), FLUOROCARBON RUBBER (VITON), FFKM,GARFOIL PACKING
